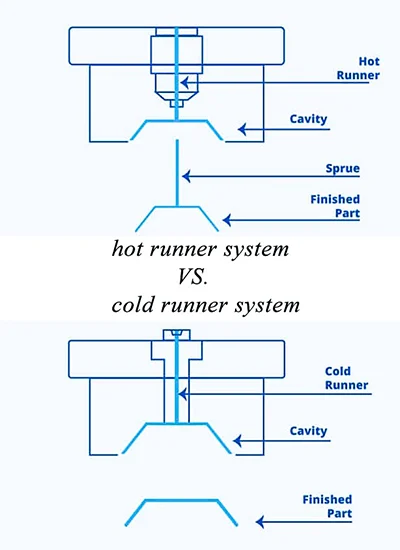

Cold Runner vs. Hot Runner Injection Moulding
Economic and Technical Considerations
Choosing between cold runner and hot runner systems in injection moulding requires careful consideration of economic costs and technical requirements. This article explores these factors and highlights typical applications where hot runner technology is essential.

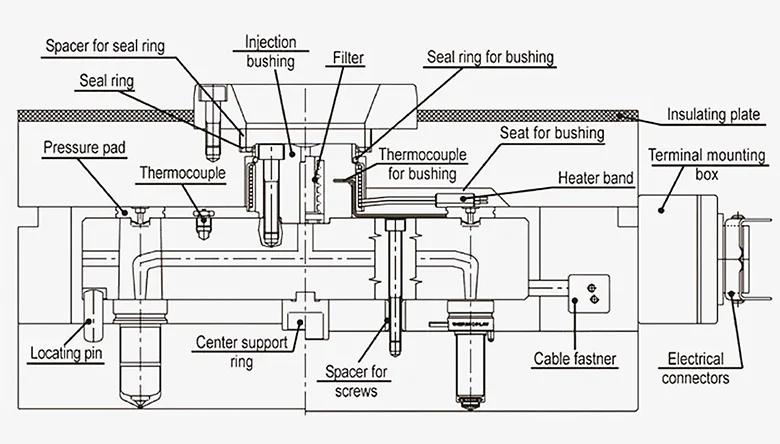

Construction of a Hot Runner System
A hot runner system is a specialised assembly integrated into an injection mould that delivers molten plastic
from the injection unit directly into the mould cavities without forming solidified runners. By maintaining the
runner at processing temperature, hot runner systems shorten cycle times, reduce material waste and improve
part quality and consistency.
Key components of a hot runner system
Manifold
The manifold is the central distribution component that channels molten polymer from the injection nozzle to
each hot runner nozzle. It is precision-machined to ensure balanced flow and is fitted with integrated heating
elements to maintain a consistent melt temperature across all cavities.
Heated nozzles
Heated nozzles connect the manifold to the mould cavities and transfer melt without premature cooling. Nozzle
designs vary by application and typically support either open gate or valve gate configurations,
depending on aesthetic and functional requirements.
Heating elements
Electric heater bands or cartridge heaters are embedded in the manifold and nozzle assemblies to maintain the
polymer at an optimum processing temperature. Correct heater placement and watt density prevent cold spots and
thermal degradation.
Temperature sensors (thermocouples)
Thermocouples monitor temperature at critical locations within the manifold and nozzle bodies. Their signals
feed the temperature controller, enabling precise thermal regulation and consistent melt quality across cycles.
Valve gates and tip gates
Valve gates employ a needle or pin mechanism to open and close the gate, which effectively eliminates
gate vestige and is preferred for cosmetic or medical applications. Tip gates are simpler and
economical but may leave a small gate mark on the part.
Insulation plates
Insulation plates are installed between the hot runner and mould plates to reduce heat loss and protect surrounding
mould components from excessive temperatures. They improve thermal efficiency and reduce energy consumption.
Support pillars and mounting hardware
Robust support pillars and precision mounting hardware keep the manifold aligned and stable during press cycles.
Correct mechanical support prevents misalignment, reduces wear and extends service life.
Benefits summary
- Reduced material waste—no solidified runners to trim or recycle.
- Shorter cycle times due to elimination of runner cooling.
- Improved part quality and surface finish through controlled melt delivery.
- Enhanced multi-cavity balance for consistent production.
Economic Advantages and Considerations of Hot Runner Moulds
Hot runner moulds reduce or eliminate production waste, enabling automated manufacturing. However, their design and production cycles are longer and more complex, resulting in higher initial tooling costs.
For high-volume production runs—often in the millions—hot runner systems offer significant benefits by reducing cycle times, primarily through shorter cooling periods. Cold runner moulds require cooling of thicker runners, extending production time and necessitating secondary operations such as gate trimming and runner recycling.In most cases, the cooling time of the moulded product is the single most important factor affecting the overall injection moulding cycle.
Hot runners eliminate these inefficiencies, making them ideal for projects with expensive raw materials, large volumes, and strict material purity requirements.
Conversely, cold runner moulds remain more cost-effective for low-volume runs due to lower tooling costs, shorter lead times, and simpler maintenance. Many manufacturers start with cold runner moulds to validate products before upgrading to hot runner systems.
Hot runner technology requires greater upfront investment, including temperature controllers, higher electricity costs, skilled labour, and ongoing maintenance. Hot runner moulds are more prone to faults and require spare parts inventory and technical support, impacting overall cost and downtime risk.
Tips:
Hot runners suit large-scale, high-quality projects with experienced operators, while cold runners are preferable for smaller, less complex production.
Benefits
Like any industrial process, economic benefit is the ultimate goal of injection moulding. However, technical feasibility is also crucial. For many modern injection moulding processes—especially emerging techniques—traditional cold runner systems are no longer viable. Although hot runner systems come at a higher cost, they are often the only technically feasible solution and have elevated traditional moulding to a new level.
Hot runner technology enables more flexible and diverse mould designs. Many complex part designs that are impossible with cold runner systems become feasible. Below are typical applications where hot runner systems are essential.
When and Why to Use Hot Runner Moulding?
Hot runner systems are indispensable in many injection moulding applications, especially the following:
3.1 High-Quality Plastic Products (e.g. Medical Components)
One of the most basic requirements for medical-grade plastic parts is the absence of gate vestiges, as these could scratch gloves or skin and risk infection. Valve gate hot runner systems solve this problem by eliminating gate marks completely. Despite a downturn in general plastics manufacturing, medical plastic components—almost all of which are made using valve gate hot runners—remain a growth area.
3.2 Co-Injection of Multiple Materials or Colours
Traditional moulding processes produce one material or colour per cycle using either cold or hot runner systems. However, co-injection of multiple materials or colours requires a hot runner system. For instance, multilayer PET bottles utilise a sandwich structure to enhance their barrier properties, featuring a thin oxygen-barrier material sandwiched between two outer layers.
In the automotive industry, multi-coloured light covers (e.g. red, amber, and clear) require simultaneous injection from several hot runner systems—something impossible with cold runners.
3.3 Angled or Side Gates
To maintain part aesthetics, gates are often placed on the side rather than the front. When the gate direction is not aligned with the mould-opening direction, traditional designs may suffer structural issues. Hot runners enable angled or side gating to accommodate complex part geometries, such as large automotive parts.
3.4 Internal Gating for Deep Cavities
In applications where no gate vestige is allowed on the surface—e.g. lipstick caps or high-end interior parts—the gate must be hidden inside the part. When the part is deep, cold runners cannot reach the gate location effectively. Hot runner nozzles can be extended to inject from within.
3.5 Stack Moulds
Stack moulds use multiple parting lines to increase output without increasing clamping force. These designs can only be implemented with hot runner systems.
3.6 PET Preform Production
The PET preforms used in beverage bottles are universally produced using hot runner systems. The largest PET moulds in the world can produce up to 144 preforms in a single cycle—something only achievable with hot runner technology.
