All Plastic Defects Arise from Irregular Flow
Full understanding the Root Cause in Injection Molding
Injection molding is a complex manufacturing process where molten plastic is injected into a mold cavity under high pressure to create detailed plastic parts. While this process offers precision, consistency, and efficiency, plastic defects remain one of the most common challenges in production. From warping and sink marks to weld lines and voids, the root cause of these defects often stems from irregular flow during the injection molding process.
This article explores how flow behaviour and product geometry influence defect formation and presents practical strategies for improving part quality and optimizing the injection molding process.

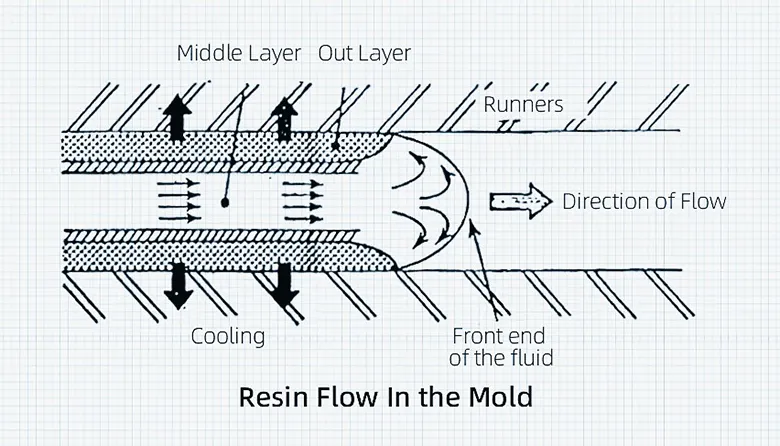

Plastic Flow Layering in Injection Molding
During the injection molding process, molten plastic is injected into the mold cavity, where it cools and solidifies upon contact with the cooler mold surfaces. This cooling process results in the formation of distinct layers within the molten plastic:
- Solidified (Outer) Layer: This layer, which is in direct contact with the mold walls, cools and solidifies rapidly, creating a rigid outer shell.
- Transition (Intermediate) Layer: Located just beneath the solidified layer, this zone consists of semi-solid, more viscous material that is in the process of solidifying.
- Flowing (Core) Layer: The innermost layer remains in its molten state, maintaining fluidity and enabling the plastic to continue filling the cavity.
These distinct layers create a complex flow pattern as the molten plastic travels through the mold geometry, significantly impacting the final quality of the molded part.
Turbulent vs. Laminar Flow
Bernoulli’s equation also helps in understanding the transition between turbulent and laminar flow during the injection process.
Turbulent Flow
This occurs when there is high velocity or irregular flow, often causing uneven filling, flow marks, or defects on the surface.
Laminar Flow
This is a smooth, steady flow where the molten plastic moves in parallel layers. Laminar flow is ideal for uniform filling and minimizes defects, ensuring a high-quality finished part.
By using Bernoulli’s principle, engineers can optimise the flow to maintain laminar flow, ensuring consistent, high-quality parts.
What Is Irregular Flow in Injection Molding?
In injection molding, flow refers to the movement of molten plastic as it travels through the injection unit and fills the mold cavity. Ideal flow conditions ensure the plastic fills the mold evenly and consistently, resulting in a high-quality, defect-free part.
Irregular flow, on the other hand, refers to unpredictable or uneven movement of the molten material within the mold. This disrupted flow can lead to serious defects in the final product and is typically caused by one or more of the following factors:
- Sudden changes in mold geometry: Abrupt variations in wall thickness, sharp corners, or complex features can alter flow speed and direction.
- Fluctuations in injection speed or pressure: Inconsistent injection parameters may result in uneven cavity filling.
- Temperature inconsistencies: Uneven mold or melt temperatures can cause differences in material viscosity, leading to irregular flow.
- Poor gate and runner design: Improperly placed or sized gates and runners can cause turbulent flow or areas where material stagnates.
When any of these issues occur, they interfere with the mold-filling process and increase the likelihood of defects such as warping, voids, or weld lines.

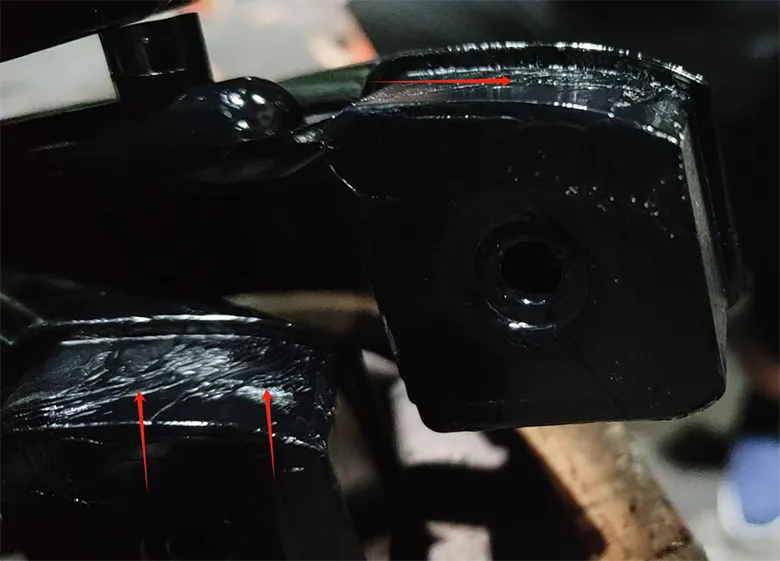

Common Plastic Defects Caused by Irregular Flow
Irregular flow during injection molding can result in a range of plastic defects, compromising both appearance and structural integrity. Below are some of the most common defects directly linked to unstable or uneven flow behavior:
- Weld Lines
Weld lines appear when two separate flow fronts meet but do not fully bond, leaving visible lines or weak spots on the part. Irregular flow causes inconsistent merging of these fronts, reducing part strength and surface quality.

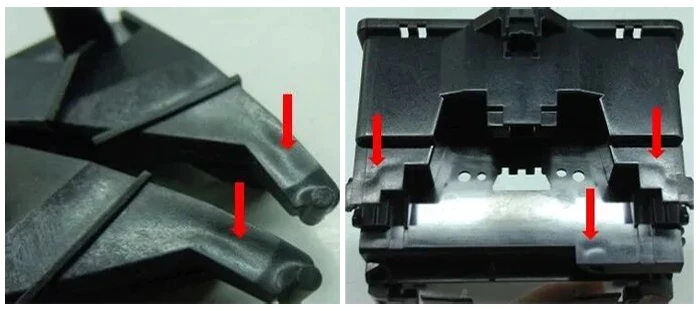

- Sink Marks
These surface depressions typically occur when thicker areas of a part are not adequately packed as the material cools. Irregular flow can cause uneven material distribution, especially in sections with varying wall thickness, leading to poorly cooled zones.

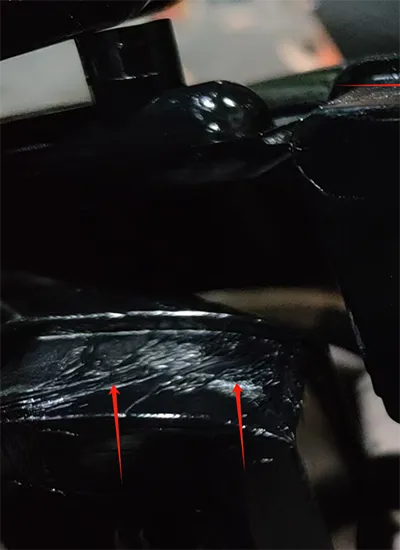

- Jetting Marks
Jetting marks are typically wavy, worm-like flow lines that appear on the surface of a molded plastic part. They happen when molten plastic is injected too quickly through a small gate or nozzle, causing it to shoot (or “jet”) into the mold cavity in a thin, uncontrolled stream—rather than spreading out smoothly. - Air Traps and Voids
Air traps occur when molten plastic is unable to displace air inside the mold, often due to blocked or stagnant flow. These voids create internal weaknesses, reduce durability, and can affect the cosmetic quality of the part. - Flash
Flash is the excess material that seeps out of the mold cavity, usually at the parting line, due to high injection pressure or poor mold sealing. Uncontrolled or turbulent flow exacerbates this issue by forcing plastic into unintended gaps.

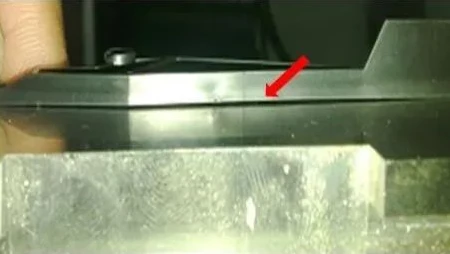

Plastic Warpage
Warpage results from uneven cooling or inconsistent shrinkage across the part. Irregular flow leads to temperature and pressure variations that distort the part’s shape, making it unsuitable for precision applications.
Impact of Product Structure on Melt Flow
The design of the molded part plays a critical role in determining how the molten plastic flows through the cavity. Features such as sharp corners, protrusions, and abrupt changes in wall thickness act like obstacles in a river, disrupting the smooth flow of material.
Just as water flowing through a river encounters turbulence or eddies around bends and rocks, molten plastic may experience similar disruptions at geometric transitions within the mold.
These disruptions can lead to several issues:
- Cracking of the solidified outer layer, resulting in surface imperfections.
- Formation of weld lines or flow marks where separate flow fronts meet unevenly.
- Localized stress concentrations, potentially weakening the final part.
A thorough understanding of these flow dynamics is essential for anticipating and minimizing molding defects during the design phase.
1. Plastic Mold Design — The Foundation of Quality (Highest Importance)
The mold is the heart of the injection molding process, shaping the final product and directly affecting dimensional accuracy, surface finish, and structural integrity. A well-designed mold ensures:
Importance: The mold’s design quality has the most profound impact on the final part quality and long-term manufacturing reliability. Errors in mold design can lead to costly reworks or scrap, making this the top priority.
2. Gate and Runner System Design — Critical Flow Control (High Importance)
The gate and runner system controls the flow path, velocity, and pressure of molten plastic entering the mold cavity. Its design impacts:
Importance: Although secondary to the mold structure itself, the gate and runner system is crucial in managing plastic flow dynamics. Properly designed gating reduces defects, improves filling consistency, and contributes significantly to productivity.
3. Process Parameter Optimization — Fine-Tuning Production (Moderate to High Importance)
Optimizing process parameters such as injection speed, temperature, pressure, cooling time, and hold pressure is vital to ensure smooth molding cycles and consistent part quality. Benefits include:
Importance: Process parameters can often be adjusted to compensate for minor design flaws or material variations. While crucial for day-to-day production stability, process optimization depends on the solid foundation of a good mold and gating system.
Summary of Importance Hierarchy
| Factor | Importance Level | Impact Focus |
|---|---|---|
| Plastic Mold Design | Highest | Part accuracy, durability, cooling |
| Gate & Runner Design | High | Flow control, filling balance |
| Process Parameter Optimization | Moderate to High | Cycle stability, defect reduction |
Addressing Irregular Flow to Prevent Plastic Defects
Minimizing irregular flow is critical to ensuring high-quality injection molded parts. Manufacturers can significantly reduce defect rates by optimizing design, process parameters, and equipment performance. Below are key strategies:
1. Optimize Mold Design

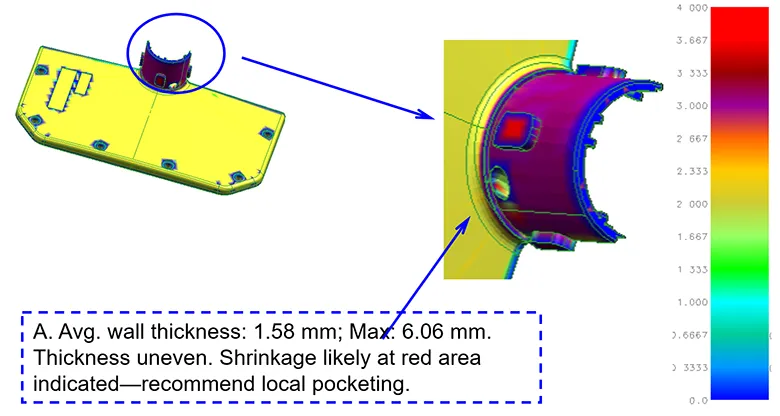

- Uniform Wall Thickness
Maintain consistent wall thickness to promote even flow and reduce turbulence during cavity filling.
- Flow-Friendly Geometry
Design smooth transitions, avoid sharp corners, and minimize abrupt thickness changes to support predictable flow behavior. - Efficient Gate and Runner Design
Properly sized and strategically placed gates and runners ensure balanced flow distribution and prevent dead zones.
2. Control Injection Parameters
- Stable Injection Speed and Pressure
Maintain consistent injection speed and pressure to avoid flow disturbances. Automated systems can enhance control accuracy. - Optimized Temperature Profiles
Use correct melt and mold temperatures to ensure uniform material viscosity and reduce flow inconsistencies.
3. Leverage Simulation Tools
- Mold Flow Analysis
Utilize mold flow simulation software during the design phase to predict flow behavior, identify potential issues, and refine mold geometry before production.
4. Maintain Equipment Regularly
- Routine Machine Maintenance
Keep injection units, nozzles, gates, and runners in optimal condition to ensure unobstructed material flow and precise control over processing parameters.
TECHNICAL QUESTIONS
Frequently asked questions
Injection molding defects refer to imperfections that occur during the injection molding process, where molten plastic is injected into a mold. These defects can impact the appearance, functionality, and quality of the molded product.
Plastic molding defects are imperfections that occur during any plastic molding process, not limited to injection molding. These defects can appear in products made by methods like extrusion, compression molding, or blow molding.
Injection defects specifically refer to flaws that occur during the injection part of the molding process. These can include issues such as improper material filling, uneven pressure, or issues during the injection of molten plastic into the mold cavity.
Plastic defects refer to imperfections in the final plastic product, regardless of the method used for its manufacturing. These defects can arise from various factors such as material composition, mold design, or processing conditions.
